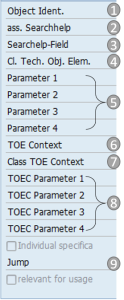

The technical object elements are structured as follows:

  1. The name of the TOE.

  2. The assigned search help of the TOE. In addition to the /SCT/ search helps, SAP standard and customer-specific search helps can also be used here.

  3. The search help field that contains the content of the element value.

  4. Class that contains the coding for the selection of the values.

  5. Parameters 1-4 → Supplementary key for determining the values for the technical object of the element. The fields are used differently depending on the type.

  6. Name of the context with the elements for the plausibility check

  7. Class that contains the coding for the context determination

  8. TOEC Parameter 1-4 → Auxiliary parameters for the TOC context class. The parameters provide the TOEC class with information on how to determine the source of the context values.

  9. The Jump Name, identifies the Jump object that is used for a jump. If this field is filled, the element value is visually highlighted on the interface with an underscore. Double-clicking then starts the QPPD with the respective object.
