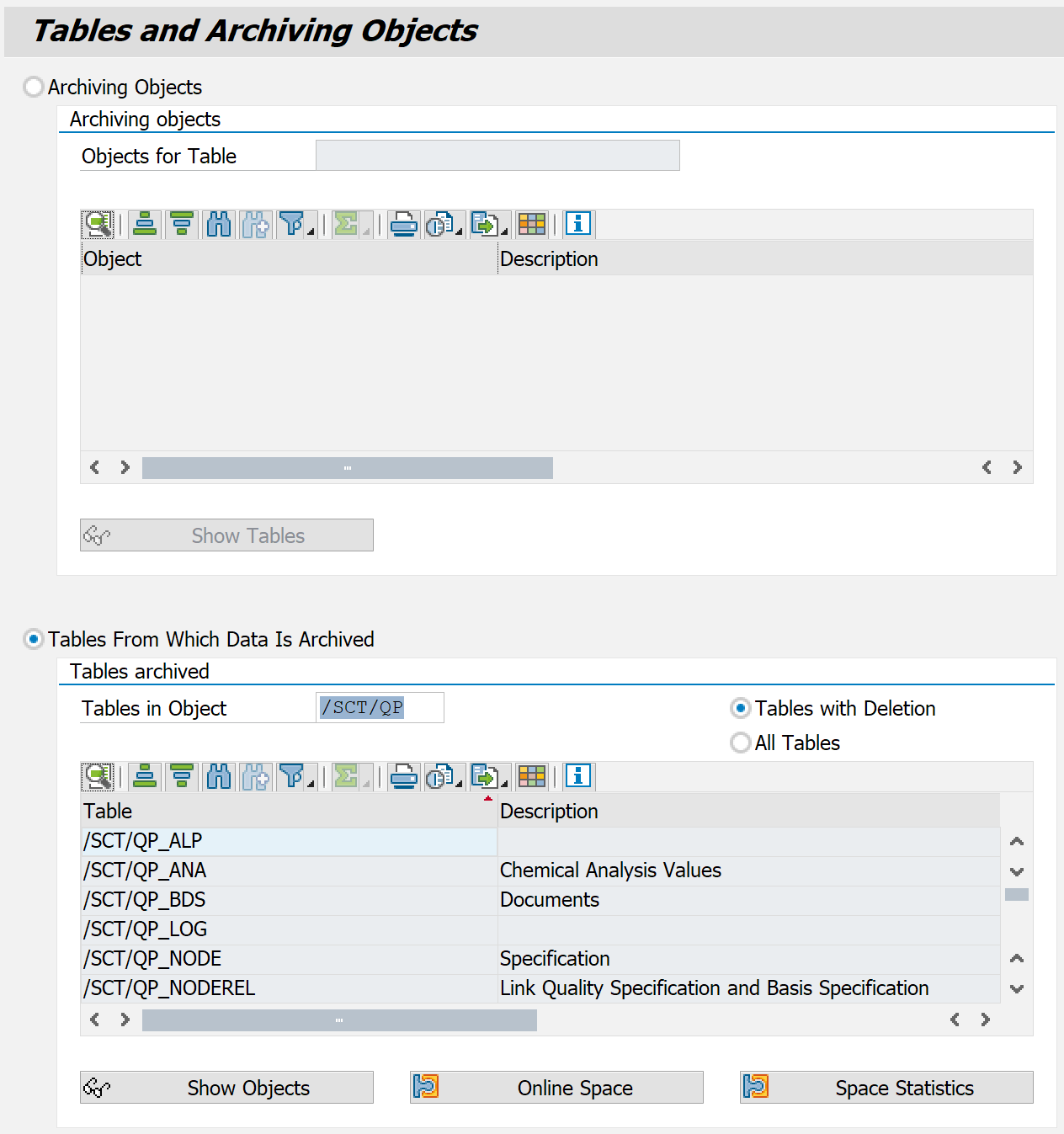

From SARA, the linked database tables for an archiving object can be displayed.
For each specification selected for archiving, the following content is archived, if it exists. Listed are the names of the database tables or structures and a brief description of the data contained.
/SCT/QP_NODE | Header data Specification node. |
/SCT/QP_NODET | Node texts. |
/SCT/QP_NODEREL | Parent-child relation of 2 nodes |
/SCT/QP_STATUS | Status information |
/SCT/QP_VAL | Element values |
/SCT/QP_VALT | Texts for element values |
/SCT/QP_PMK | Inspection characteristic data |
/SCT/QP_ANA | Chemical analyses data |
/SCT/QP_STX | Long Text IDs. |
/SCT/QP_S_STXTEXT | Resolved texts to long text IDs. |
/SCT/QP_BDS | Business documents |
/SCT/QP_LOG | Log entries |
The particular nodes that are saved in relation to a single specification are both the original nodes and all referenced nodes.
To be able to map different customizing states when viewing archived specifications, the customizing state that exists when the archiving run is performed is also saved once with the archive file. At the start of an archiving session, the entire Customizing is read and added to the archive file as "initialization data".
