Two column groups are required to define the columns for the FDM in purchase transactions ME21N, ME22N, and ME23N.

A column group is also required to display the data in the QPPD Cockpit.

Transaction /SCT/QP_CUST

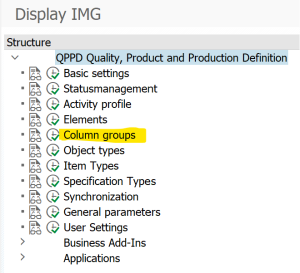

Perform "Column groups" activity:

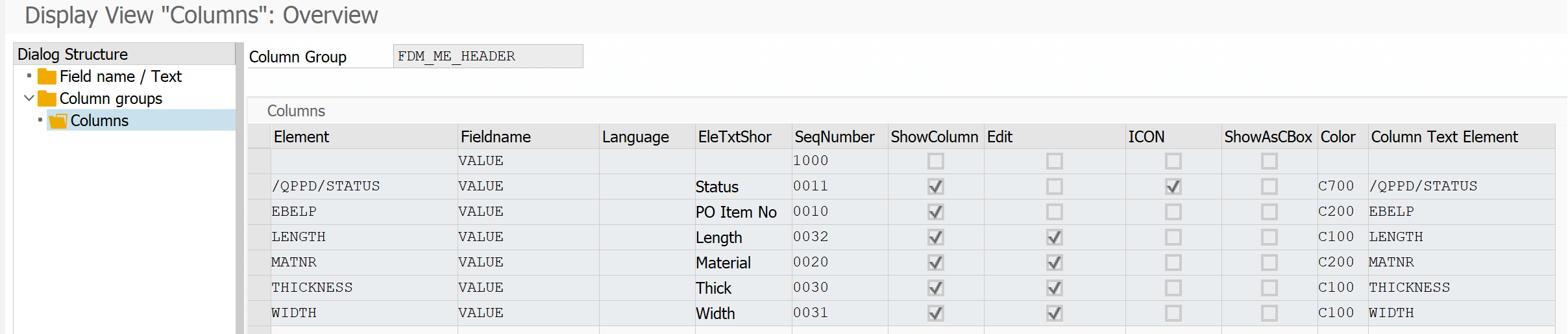

1. Create "FDM_ME_HEADER"

Create a column group "FDM_ME_HEADER" for displaying the FDM in the HEADER. All elements of the vertical element group must be entered as dynamic elements in the column group.

All customer-specific elements and fields must be included here.

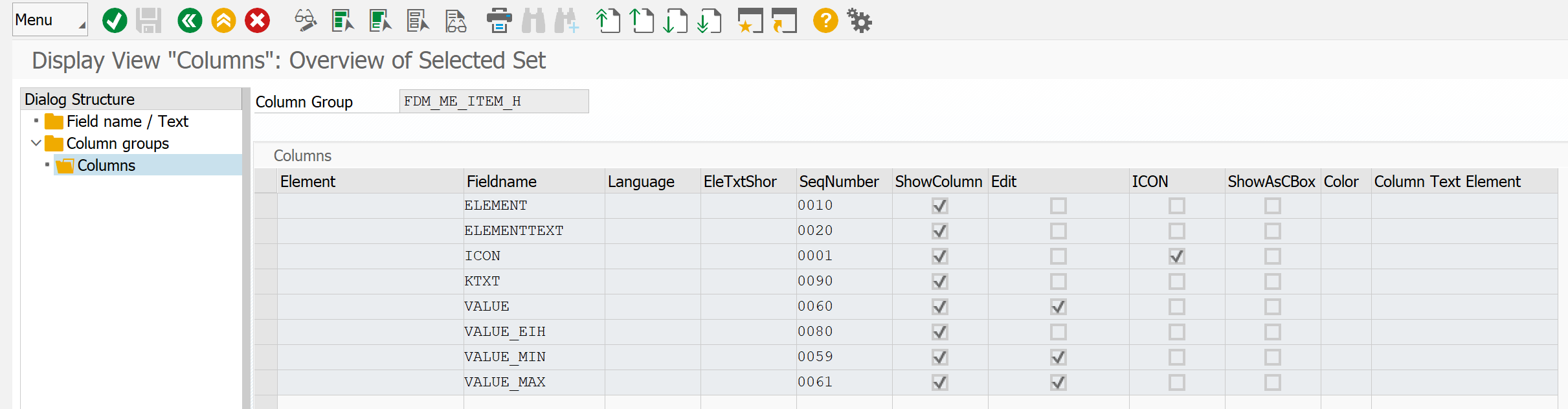

2. Create "FDM_ME_ITEM_H"

Create a column group "FDM_ME_ITEM_H" for displaying the FDM at the item level. This column group is used if the elements are to be displayed horizontally.

All customer-specific elements and fields must be included here.

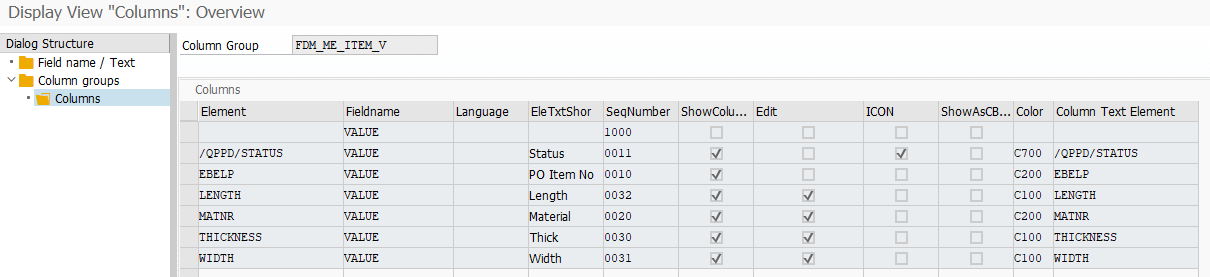

3. Create "FDM_ME_ITEM_V"

Create a column group "FDM_ME_ITEM_V" for displaying the FDM at item level. This column group is used if the elements are to be displayed vertically.

All customer-specific elements and fields must be included here.

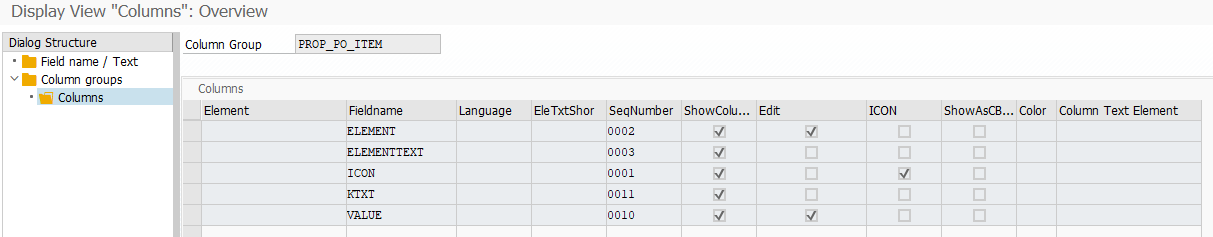

4. Create "PROP_PO_ITEM"

Create a column group "PROP_PO_ITEM" for display in the QPPD Cockpit. The following columns are required.
