The action log helps the user in the QPPD to track changes to specification objects.

The following functions are available to the user.

  • Display action log

  • Start rule log

  • Stop rule log

User functions

Documentation

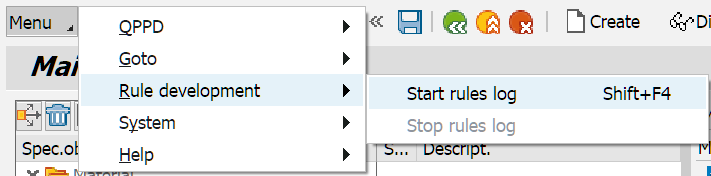

Menu functions are available in the QPPD cockpit for writing a separate log area (segment) in the action log.

These can be found under the menu item "Rule development".


Show Action Log

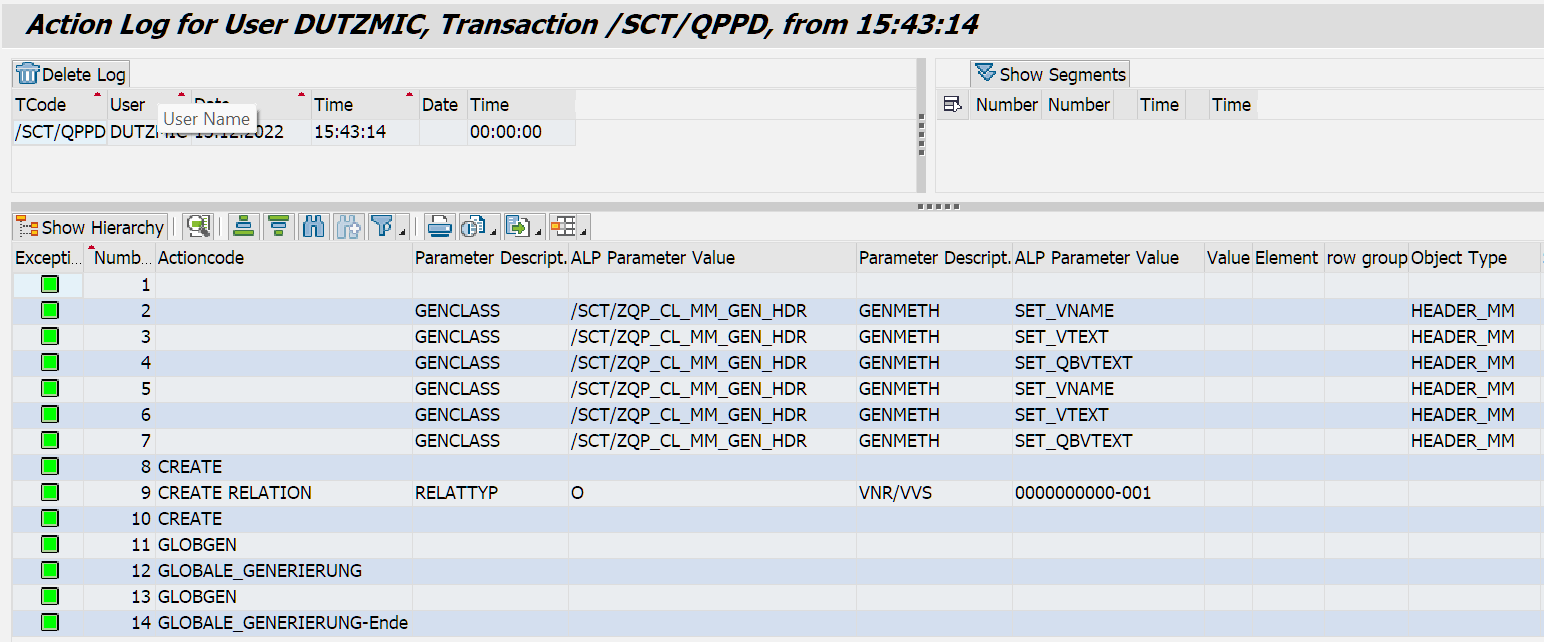

Menu functions are available in the QPPD cockpit to view currently running or persistent logs in the action log.

Show current Protocol

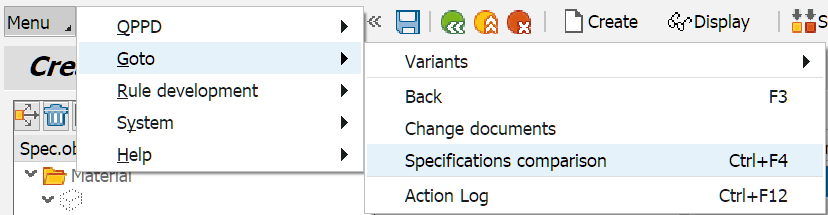

For this, the user goes to the menu item "Goto"→ Action Log or uses the keyboard shortcut "Ctrl+12".


Viewing logs for the object

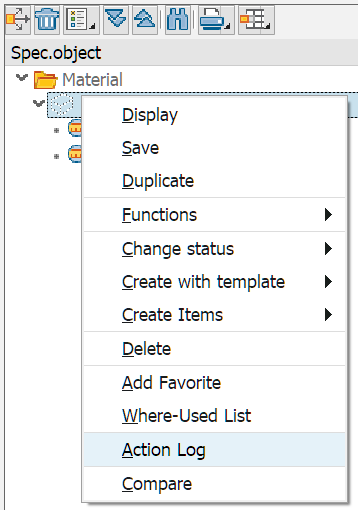

If the user wants to view the action log for a specific object, they can call it up via the context menu (right-click on the object).
