This page describes the steps required to set up the QPPD for the first start. This includes managing the number ranges, activating the business set and registering the license key.

Number ranges

The number ranges are maintained via transaction SNRO.

Two separate number ranges are used: /SCT/QP_RG and /SCT/QP_NR.

  • /SCT/QP_NR can be customized by the customer. This number range must be maintained if specification numbers are to be used in specification types or item types.

  • /SCT/QP_RG uses the number range 01 and must be maintained if vertical elements are to be used.

Business Sets

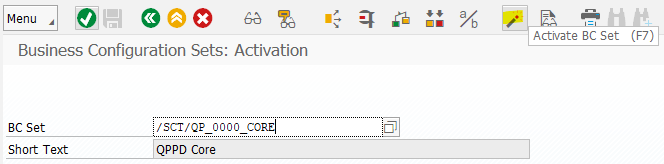

The business set is activated via transaction SCPR20.

Enter the business set /SCT/QP_0000_CORE and activate with the "Activate BC Set" button.


It then looks like this:

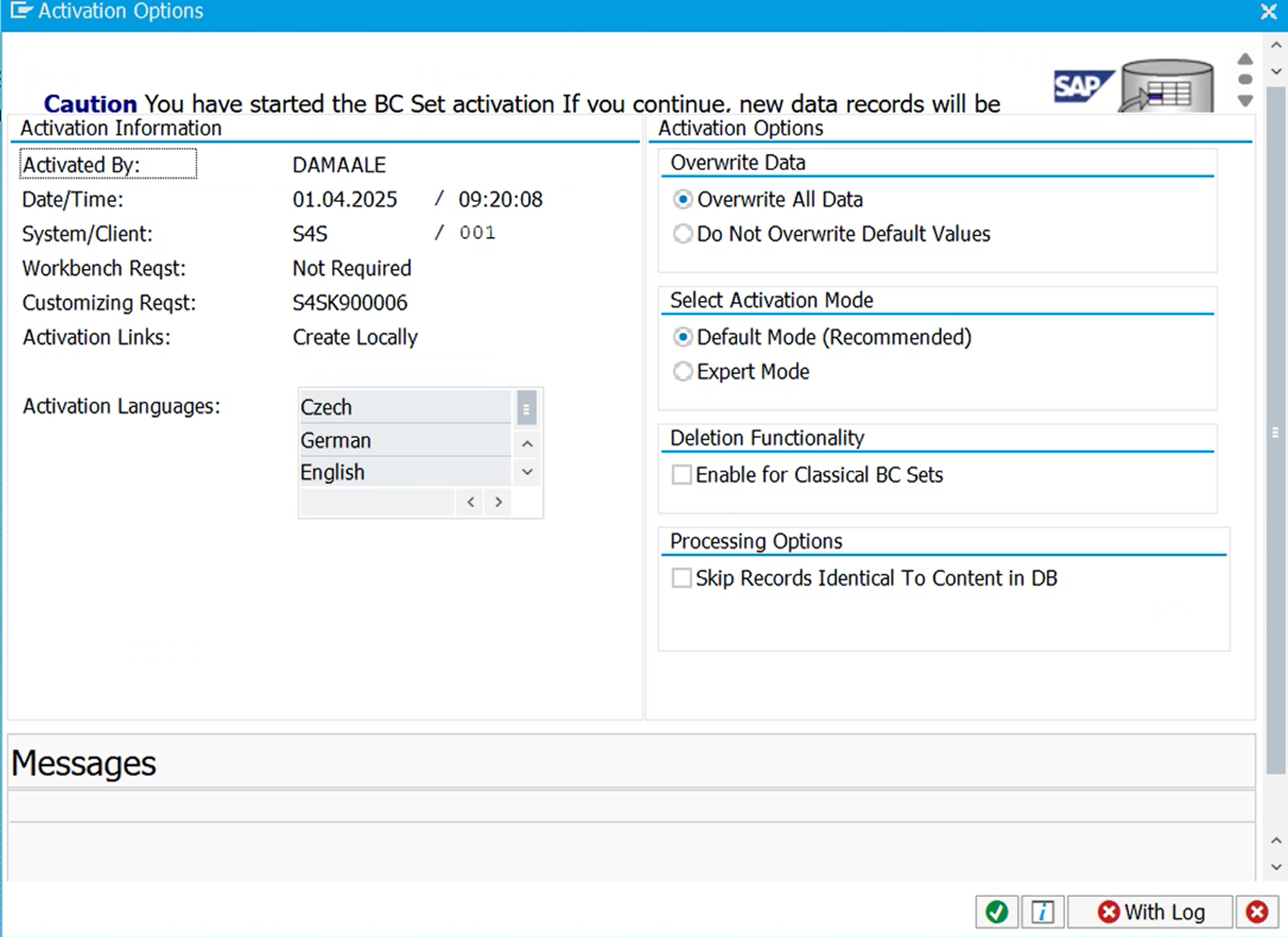

Start activation with the settings shown above.

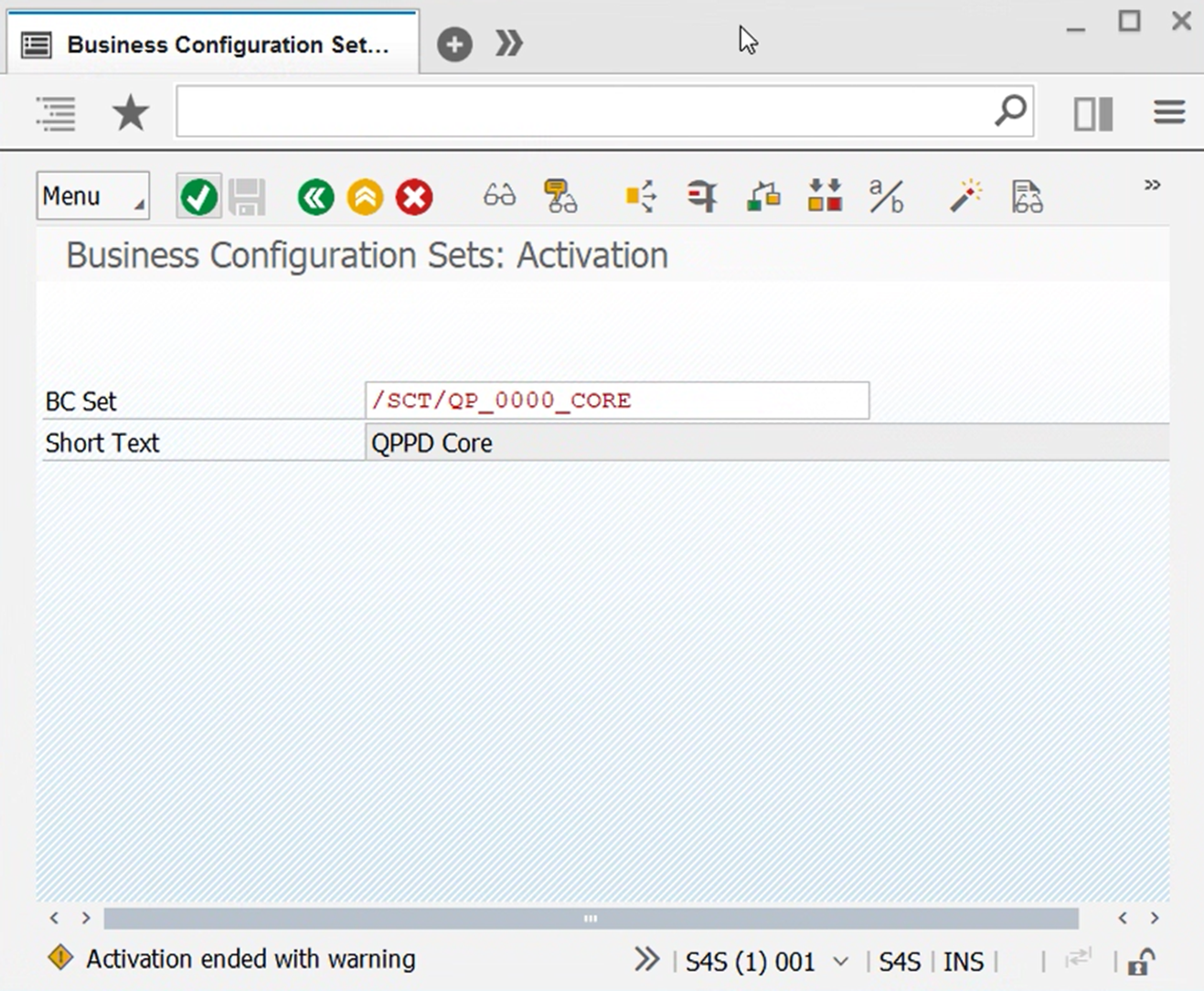

Activation ends with a warning.


QPPD registration key

Transaction SE38

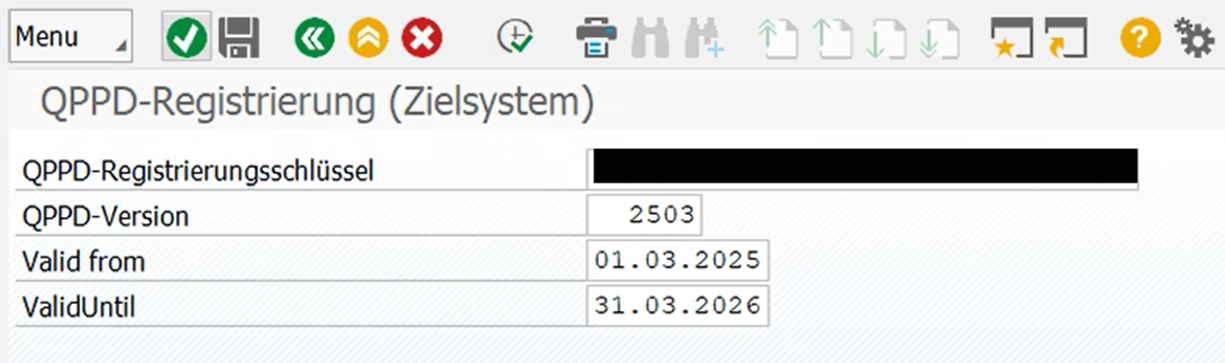

Start the program /SCT/QP_REGISTER and enter and execute the registration key, the version and the validity period. It will then look like this:
