SAPMV45A

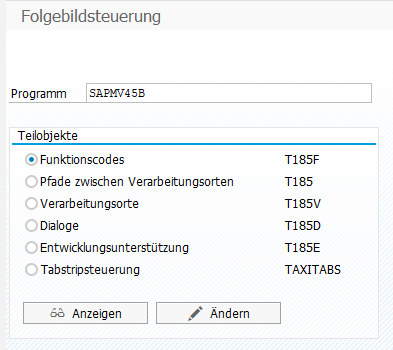

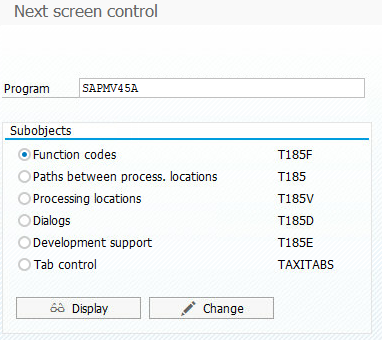

Call up transaction VFBS.

Make the following settings for the SAPMV45A program.


1. Tabstrip control

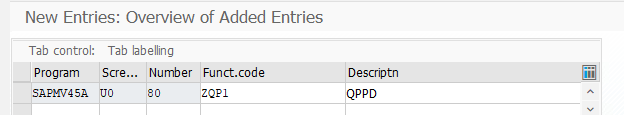

Insert the following setting for the tab control. The number must be unique here. This represents the position of the new tab.

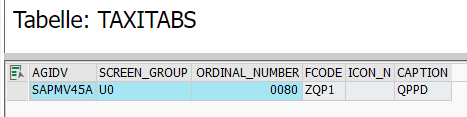

The following entry is created in the TAXITABS table:


SAPMV45B

Call up transaction VFBS.

Make the following settings for the SAPMV45B program.


1. Insert the function code ZQP1 for the TRTYP = A, H, V as follows:

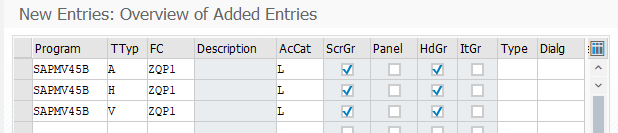

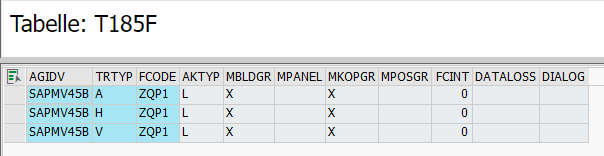

The following entries are created in table T185F:


2. Maintain paths

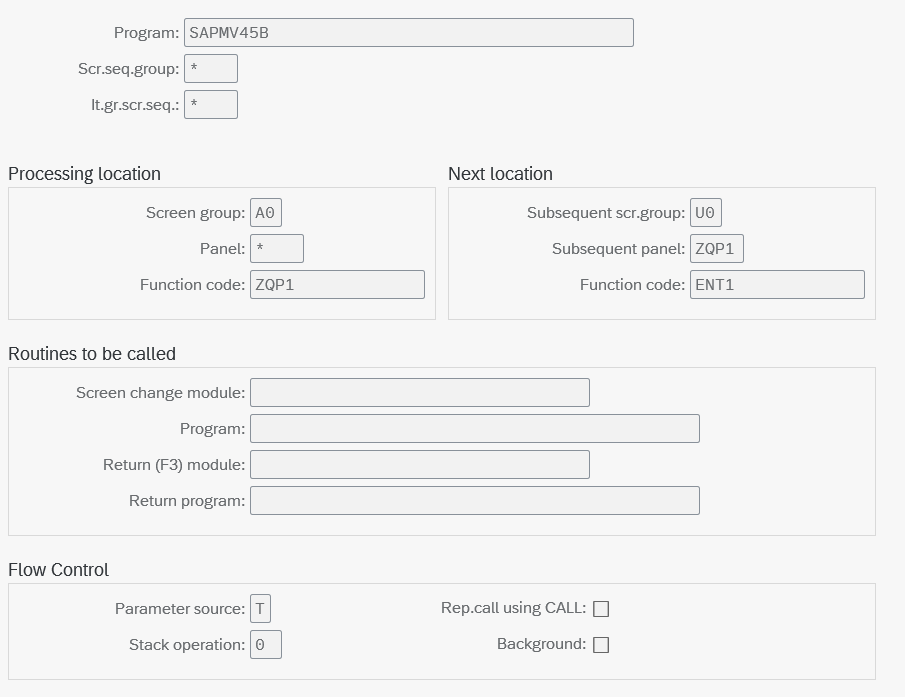

Maintain paths between processing locations for function code ZQP1 and screen groups A0, FL, K0, P0, P1, PF, PL, R1, U0 as follows:

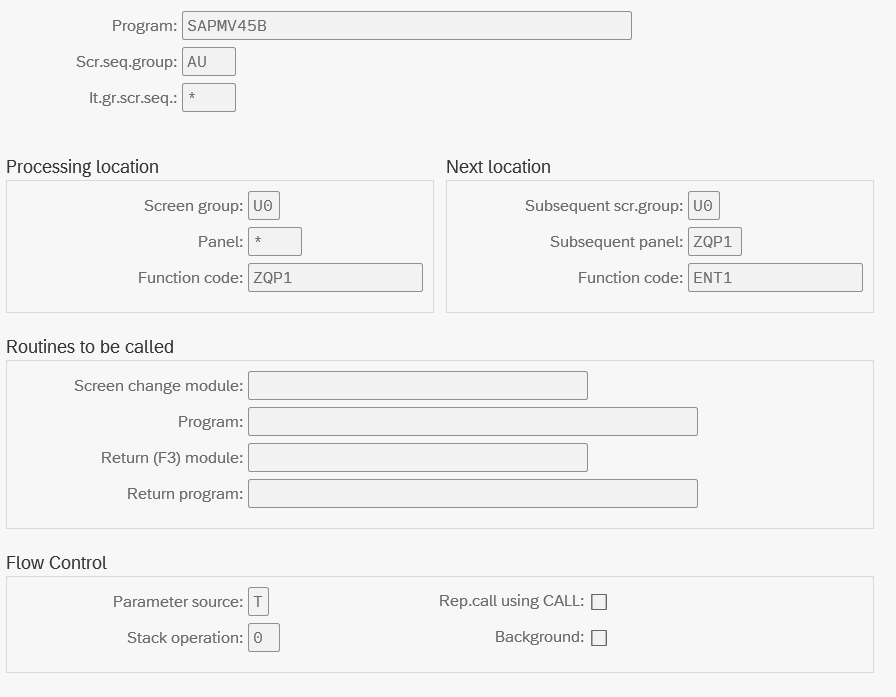

For screen group U0, however, the screen sequence header group must be set to AU:

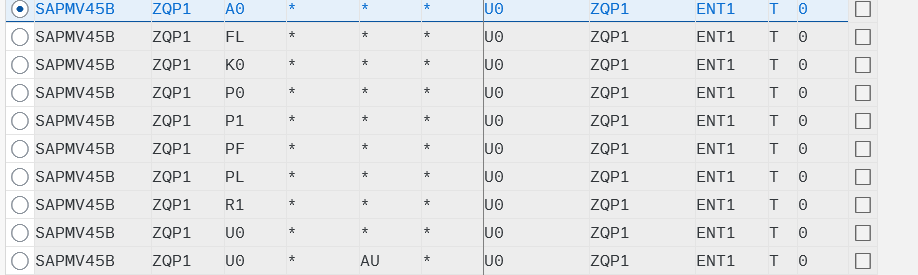

The following entries are created:

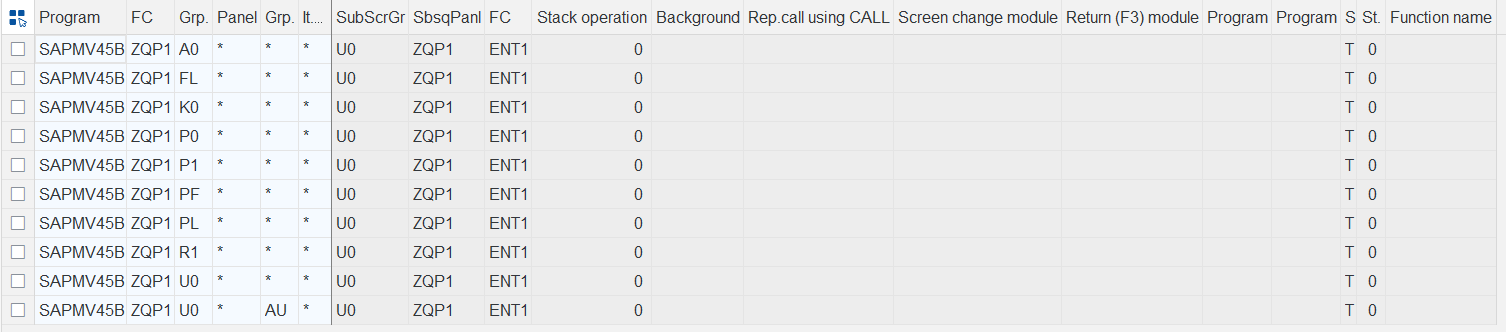

The following entries are created in table T185:

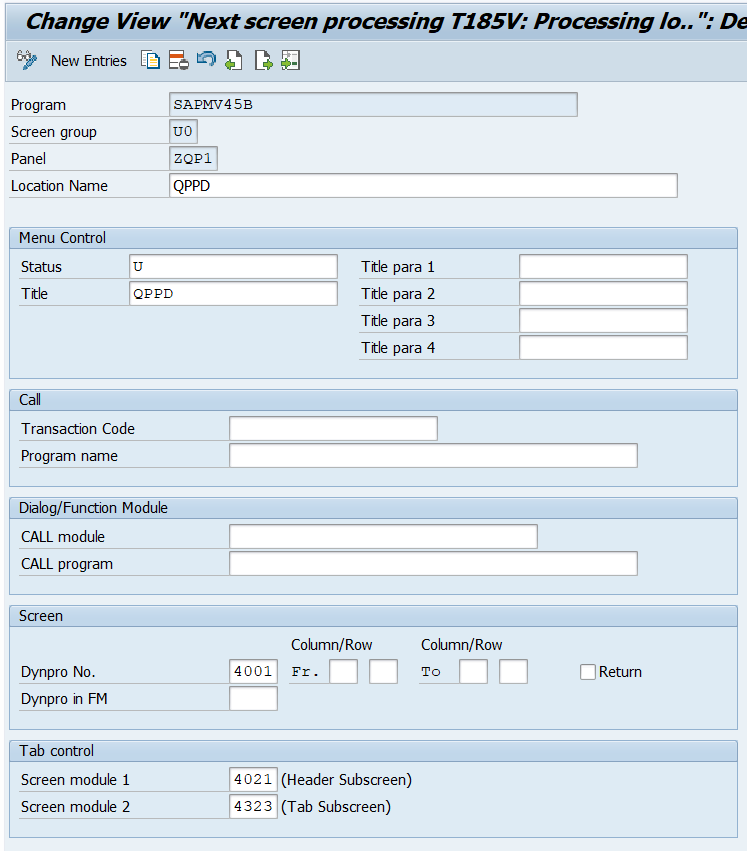

3. Set the following processing location.


The following entry is created in table T185V:
