Setting up the synchronization

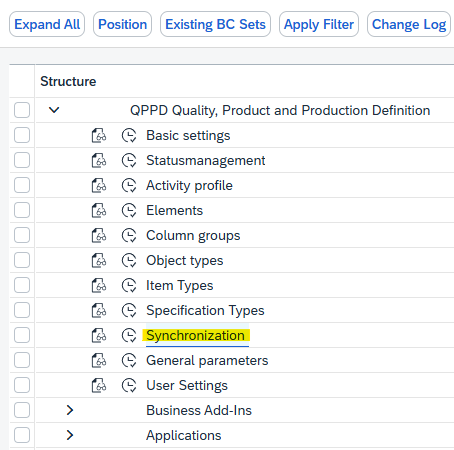

Execute transaction /SCT/QP_CUST and select synchronization.

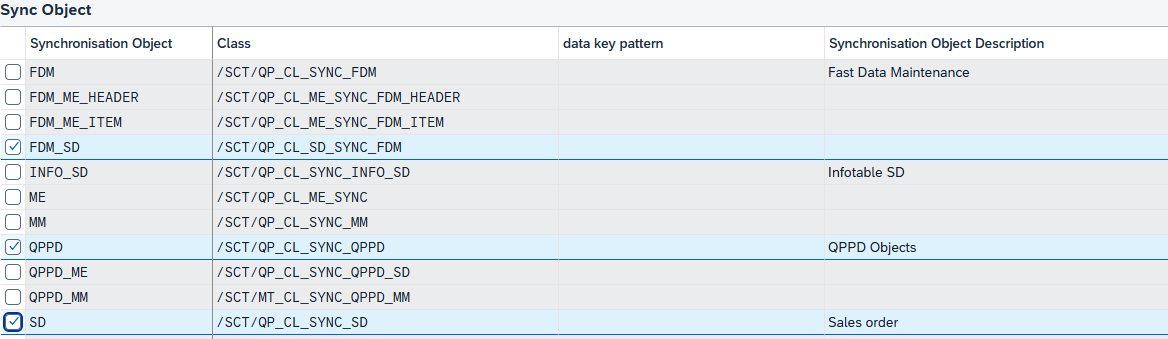

Sync object

The following objects must be created:

1. Sync object SD with class /SCT/QP_CL_SYNC_SD.

2. Sync object QPPD with class /SCT/QP_CL_SYNC_QPPD.

3. Sync object FDM_SD with class /SCT/QP_CL_SYNC_FDM.

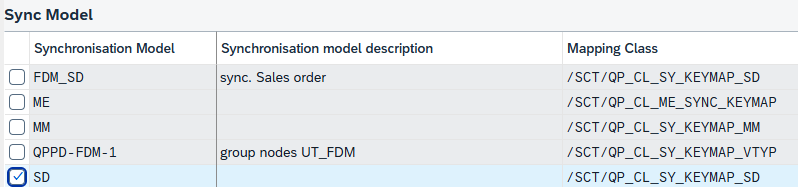

Sync model

Create the sync model SD with mapping class /SCT/QP_CL_SY_KEYMAP_SD.

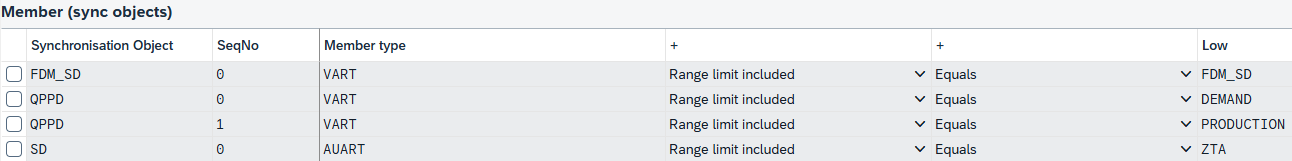

Member

The following entries must be created:

1. Sync object = FDM_SD

   1. SeqNo. = 0

   2. Member Type = VART

   3. Range limit included (inclusive)

   4. equals

   5. Low = FDM_SD

2. Syncobjekt = QPPD

   1. SeqNo. = 0

   2. Member Type = VART

   3. Range limit included (inclusive)

   4. equals

   5. Low = DEMAND

3. Sync object = QPPD

   1. SeqNo. = 1

   2. Member Type = VART

   3. Range limit included (inclusive)

   4. equals

   5. Low = PRODUCTION

4. Sync object = SD

   1. SeqNo. = 0

   2. Member Type = AUART

   3. Range limit included (inclusive)

   4. equals

   5. Low = ZTA

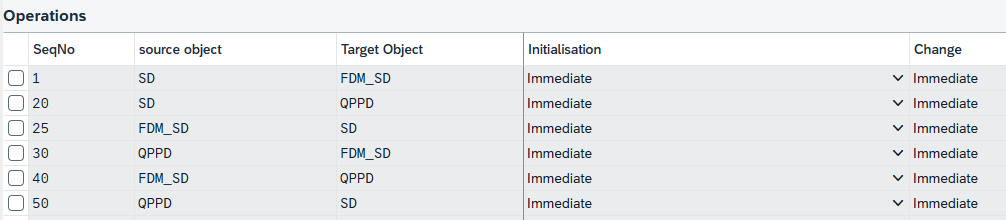

Operation

Create new operation with the following values:

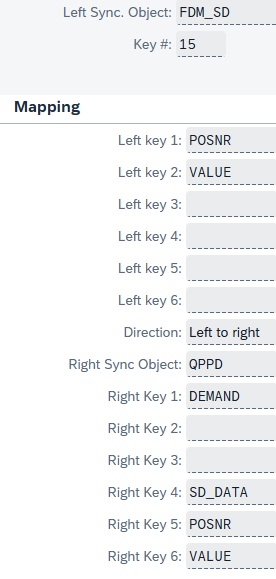

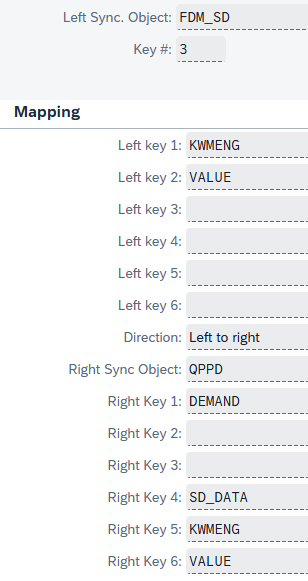

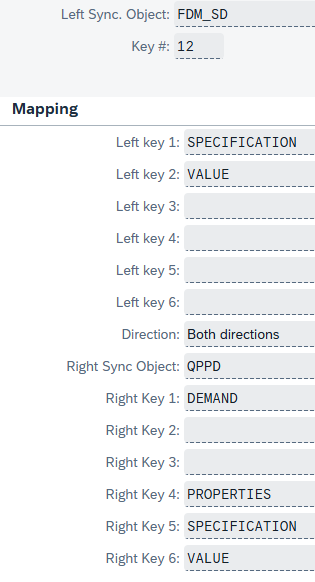

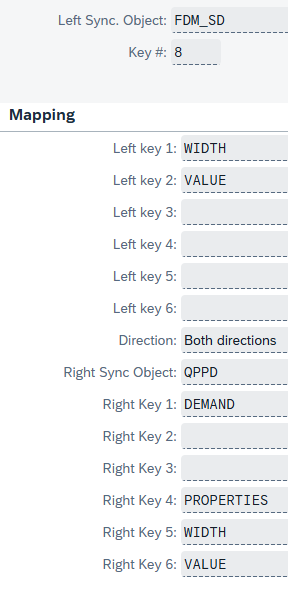

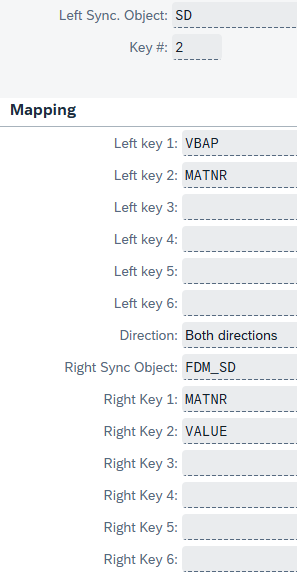

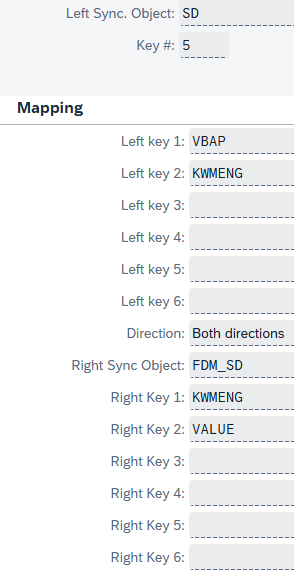

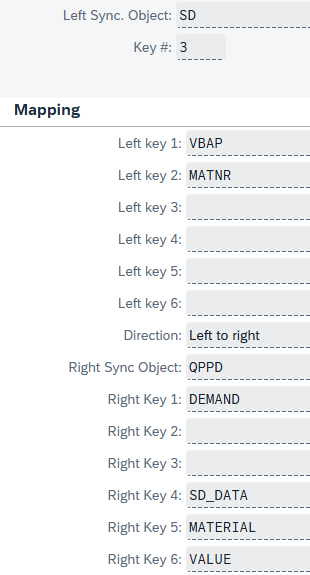

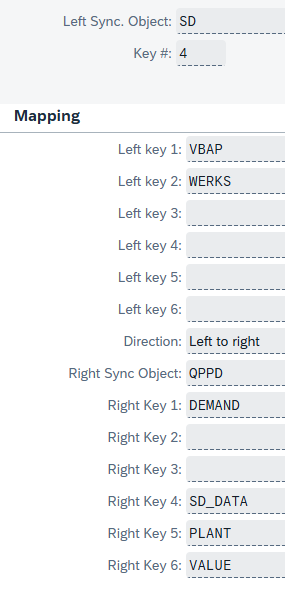

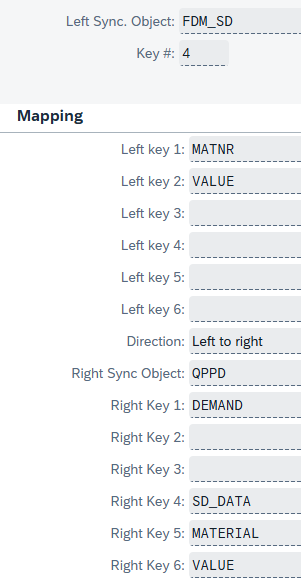

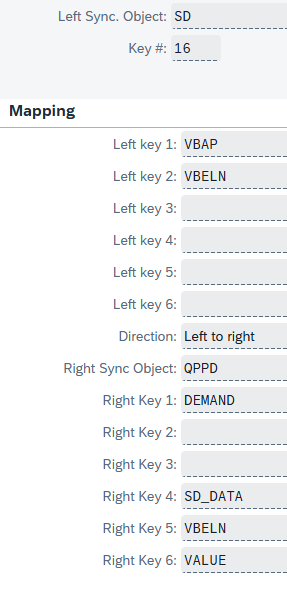

Mapping

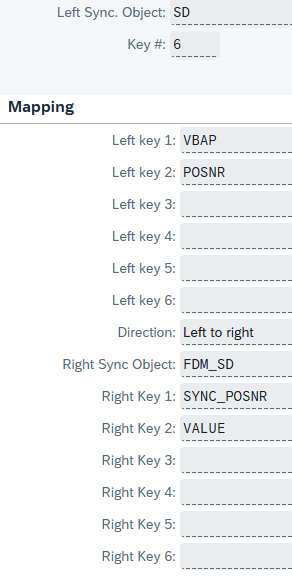

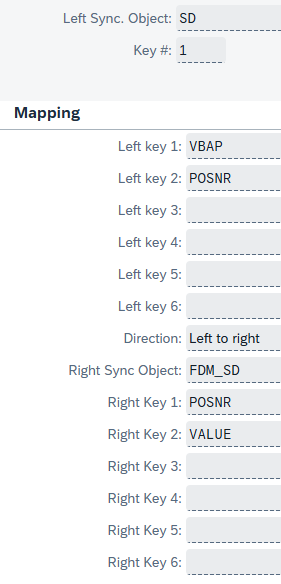

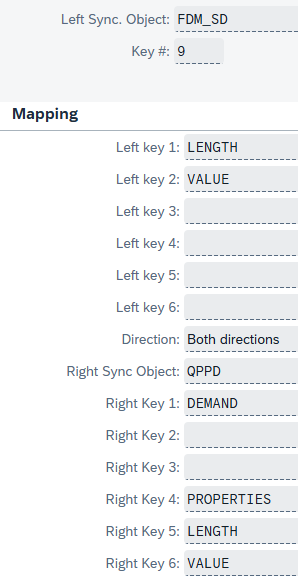

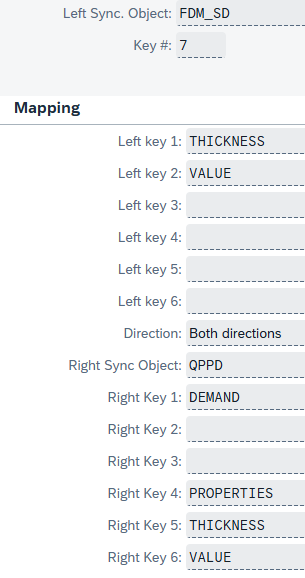

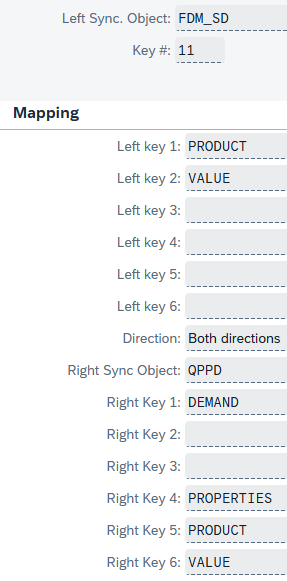

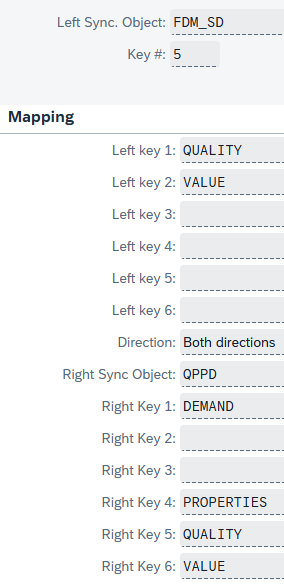

Create a new mapping with the following entries:

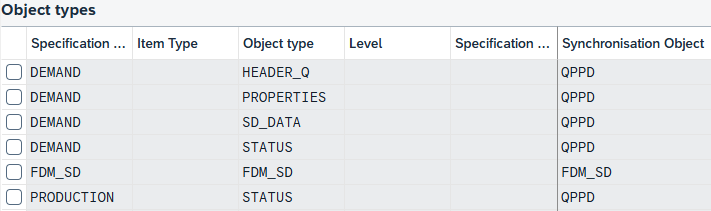

Object types

Add the following entries:
