The following HowTo describes the integration of a QPPD SAP enhancement into the PP module

1. extension of the function group

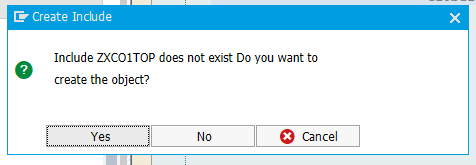

Transaction SE80 is used to add a ZXCO1TOP include to the XCO1 function group.

DATA : mo_badi TYPE REF TO /sct/qp_badi_pp.
LOAD-OF-PROGRAM.
QPPD-Badi for changes to the production order
GET BADI mo_badi.

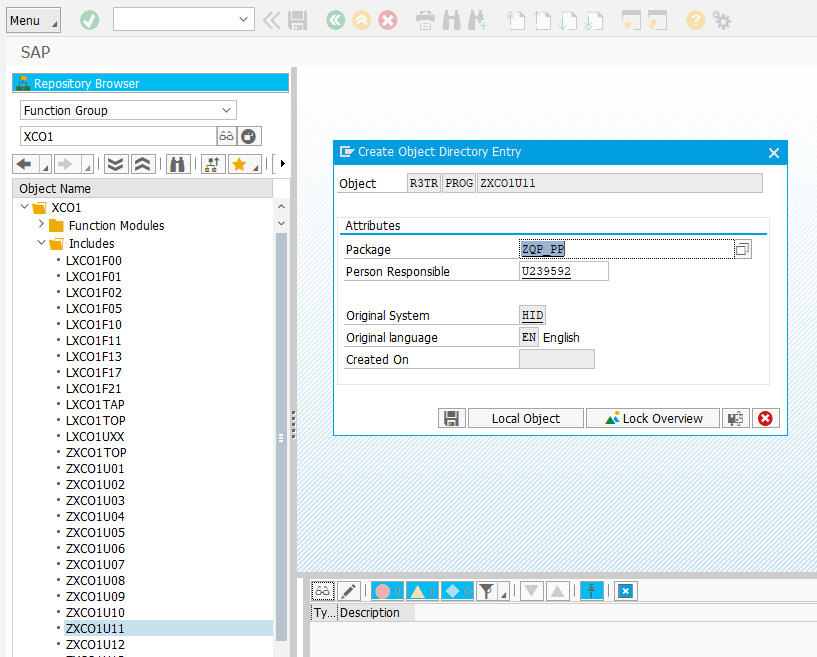

A second include ZXCO1U11 is also required.

-Call QPPD-Screen

IF mo_badi IS NOT INITIAL.
  CALL BADI mo_badi->order_display.
ENDIF.

2. Creation of SAP-Enhancements

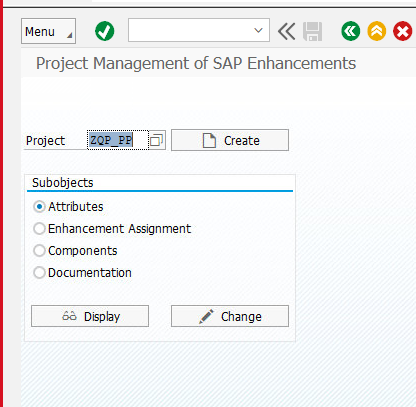

Transaction CMOD

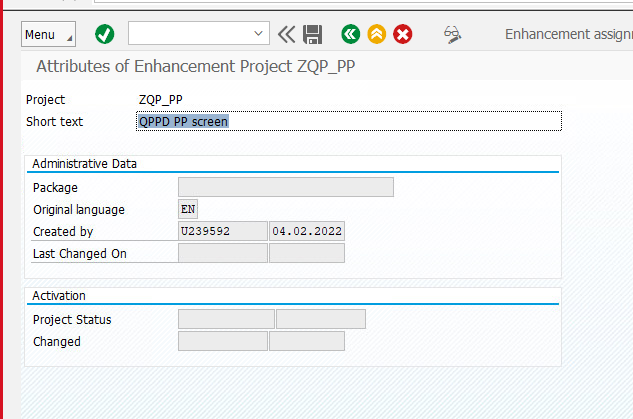

Description

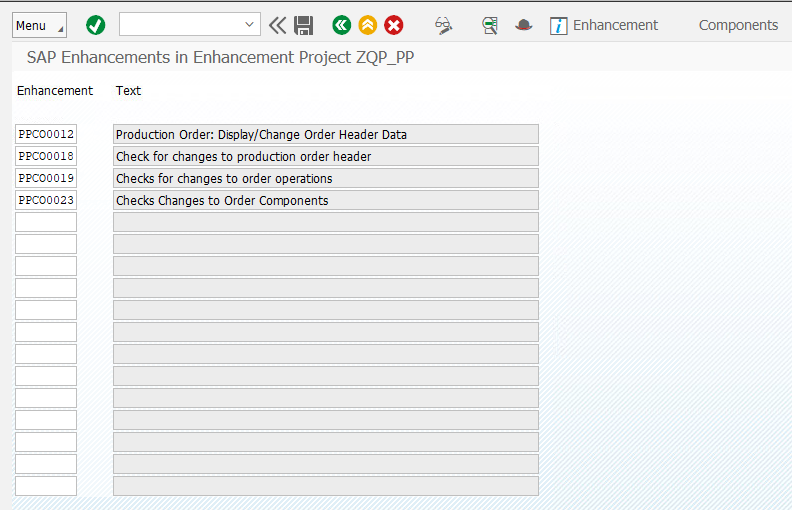

Enhancement assignments

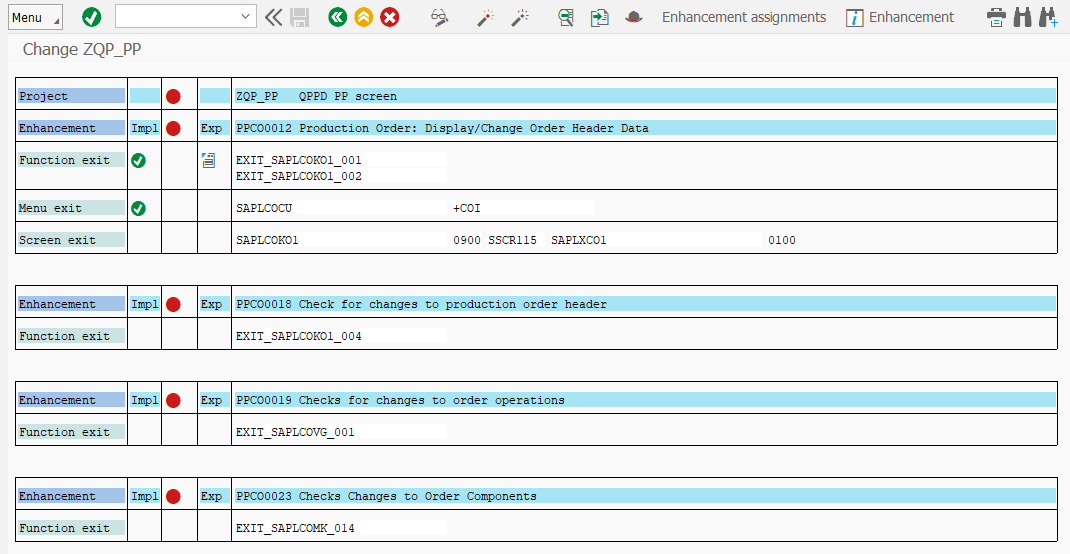

Activate.

Press

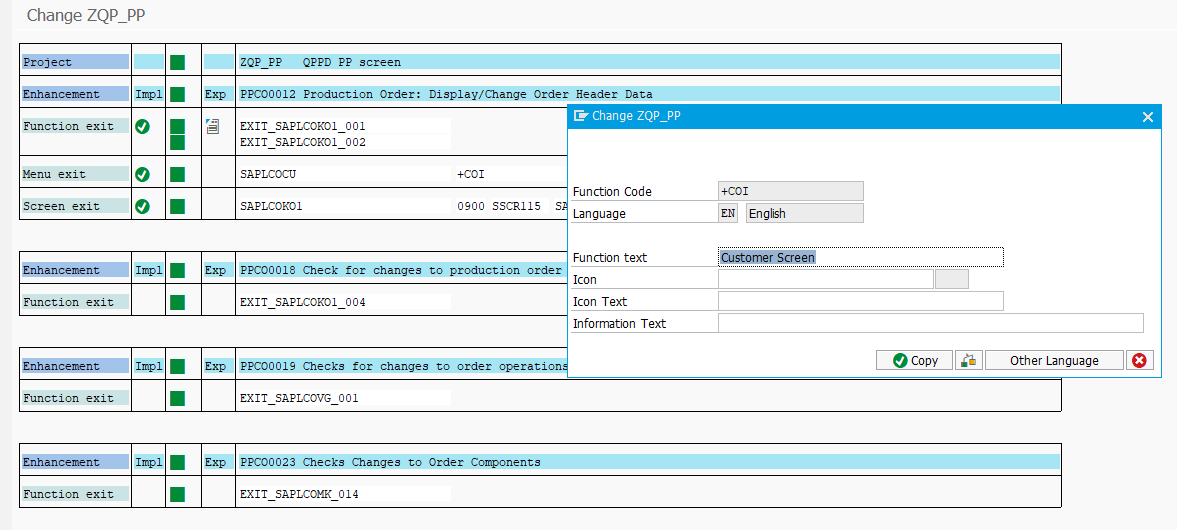

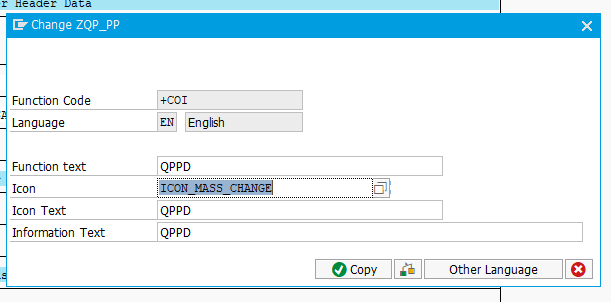

+COI


Activate again.

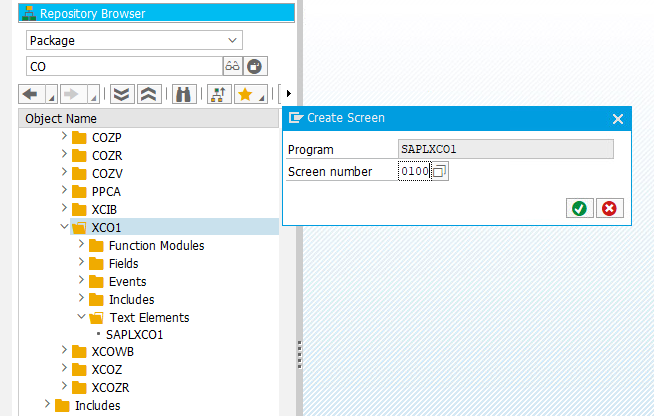

Add Dynpro:

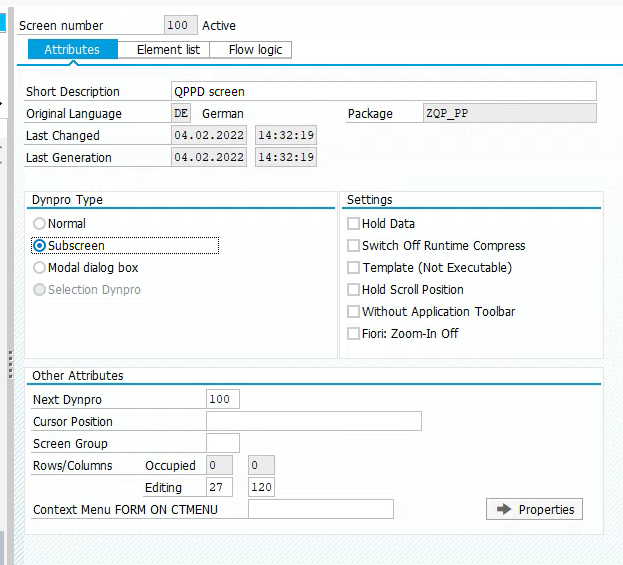

Subscreen

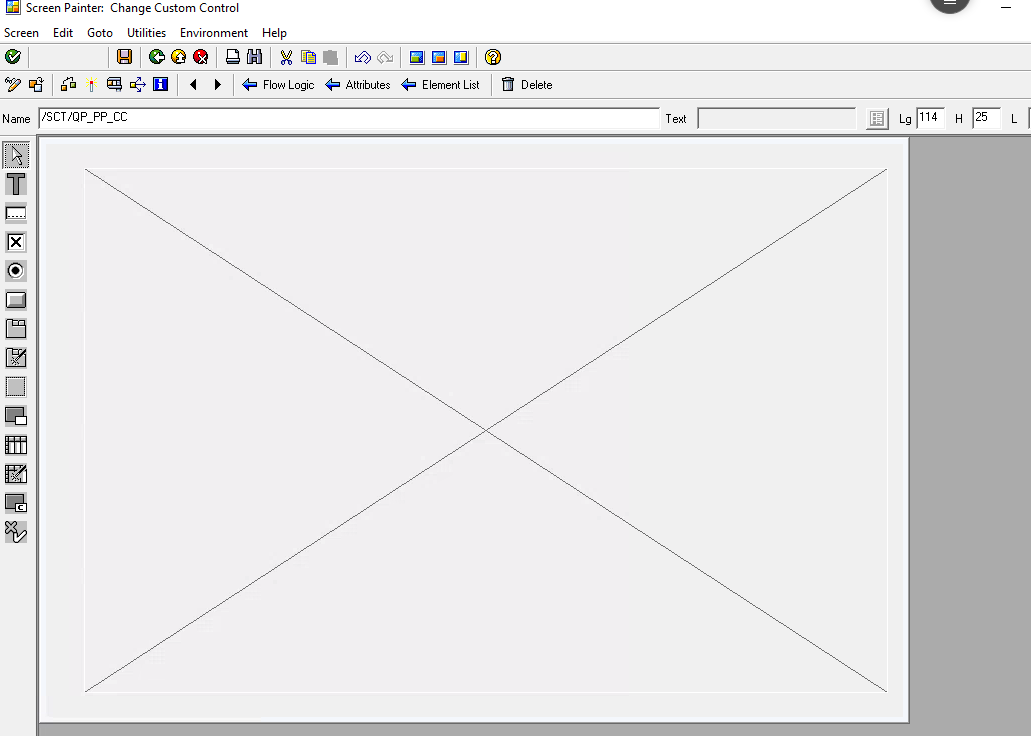

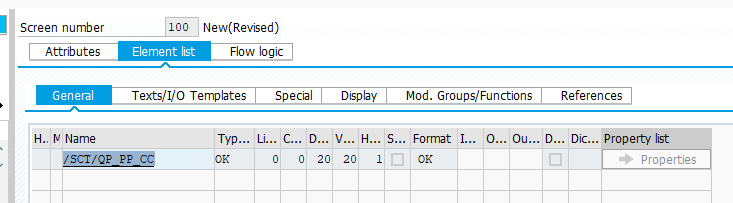

Add custom container


Looks like this:

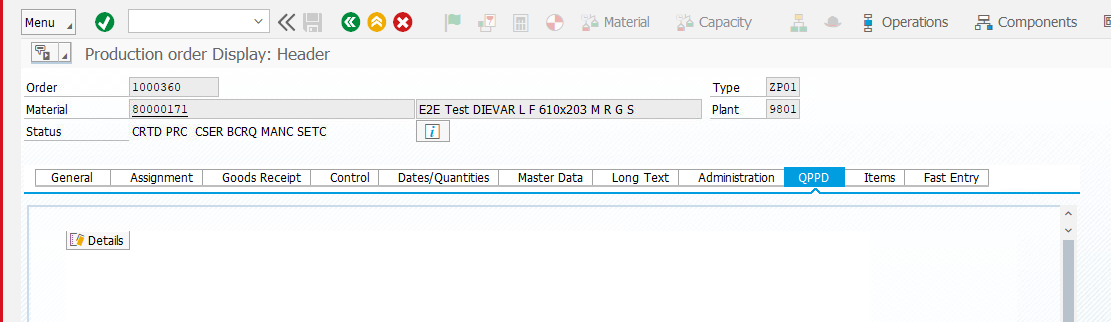

It will look like this:
