In production order processing, transaction /SCT/QP_C73 determines when QPPD should be active and what should be displayed on the additional screen.
QPPD is only active if there is an entry for the plant/production order type.
In addition to the pushbutton to jump to QPPD, 2 different object types can also be displayed on the additional screen.

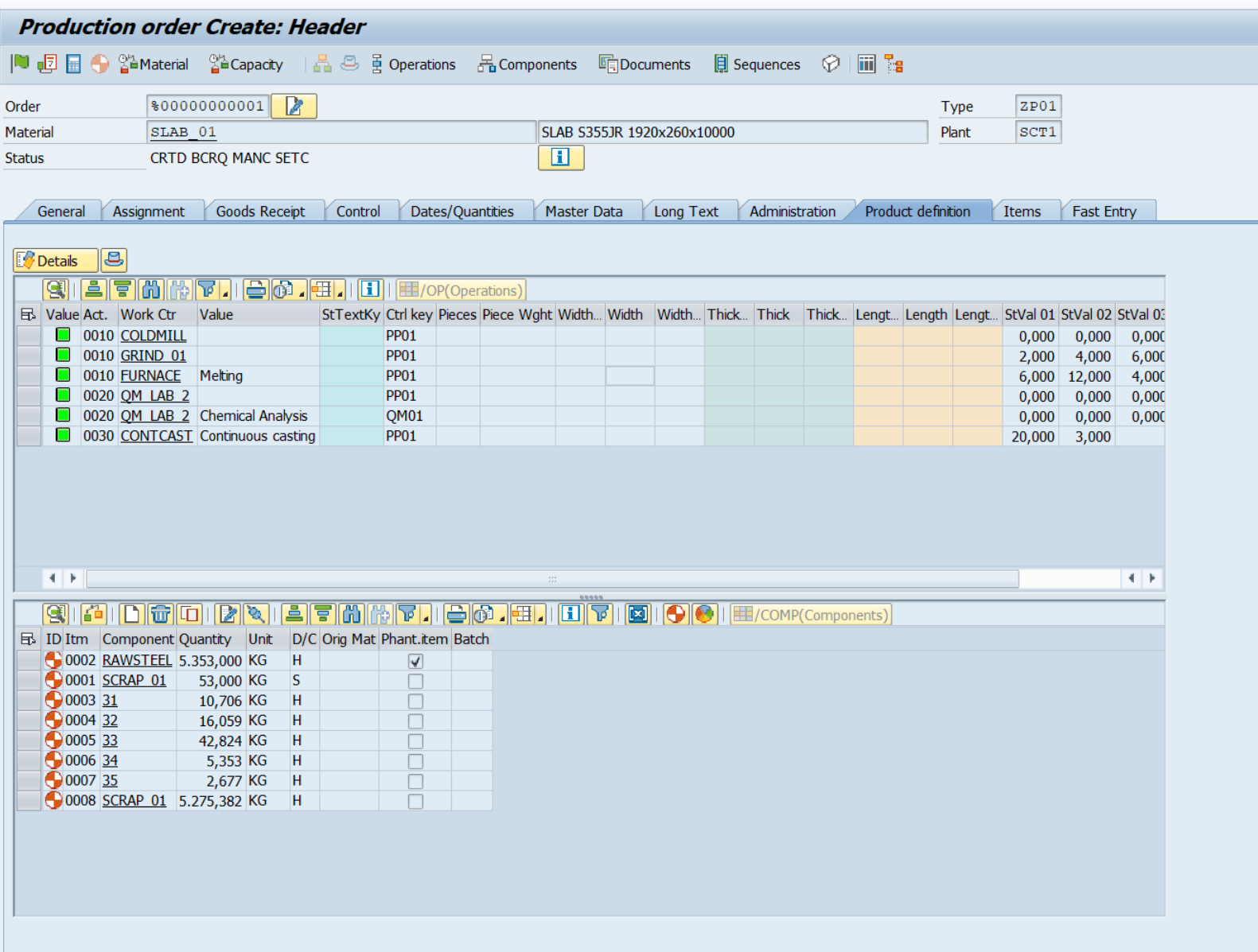

This can be used, for example, to display the operation list and the component list
These object types must be available in the assigned rule type.
Different entries can be made for each plant/production order type combination:
The assigned instruction type that represents the production order
A unique item type/object type pair which is displayed at the top
A unique item category/object category pair is displayed below
If the item category is not specified, the object category is searched for on the header of the rule type.
If both item type and object type are empty, nothing is displayed.

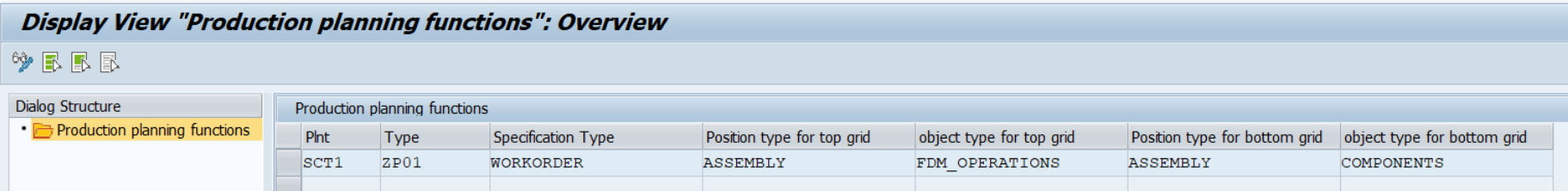

For example:
