Elements are the basic data units in the QPPD. They must be created completely and correctly, as they are used later in object types and specification types.

The following elements must be created:

Transaction /SCT/QP_CUST

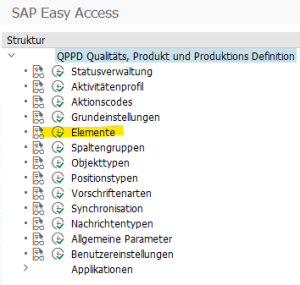

Execute the "Elements" activity:


Element descrition

Display in QPPD customizing

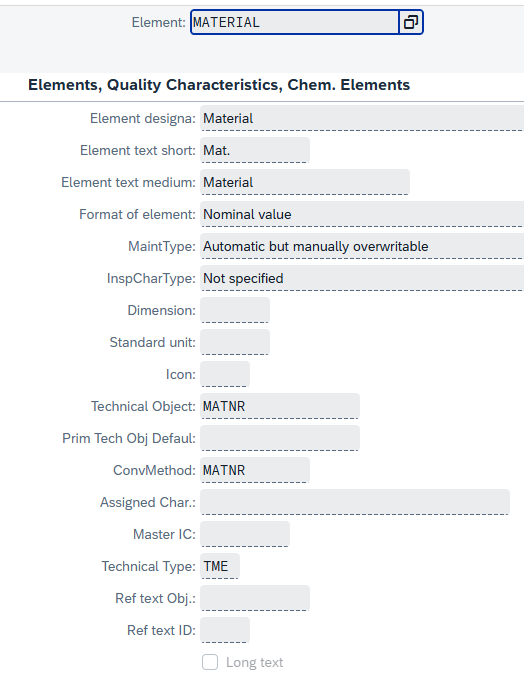

Material

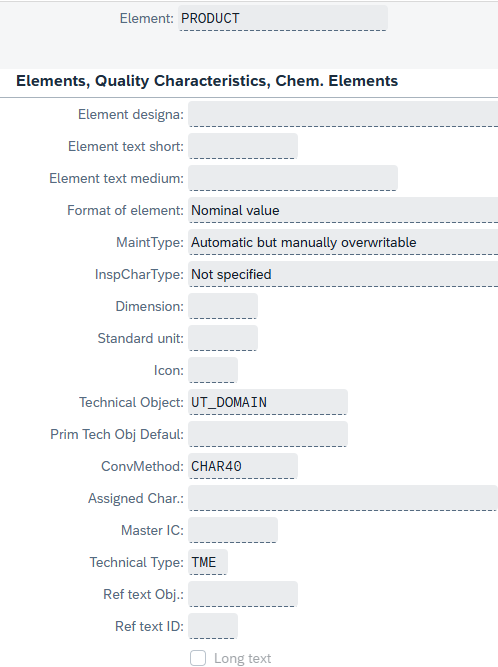

Product

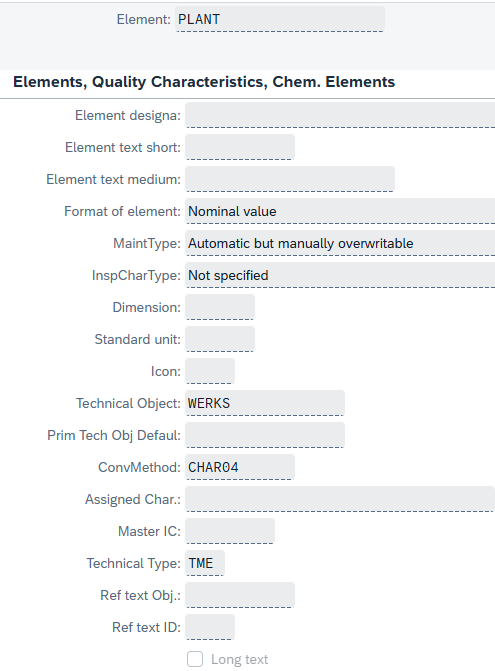

Plant

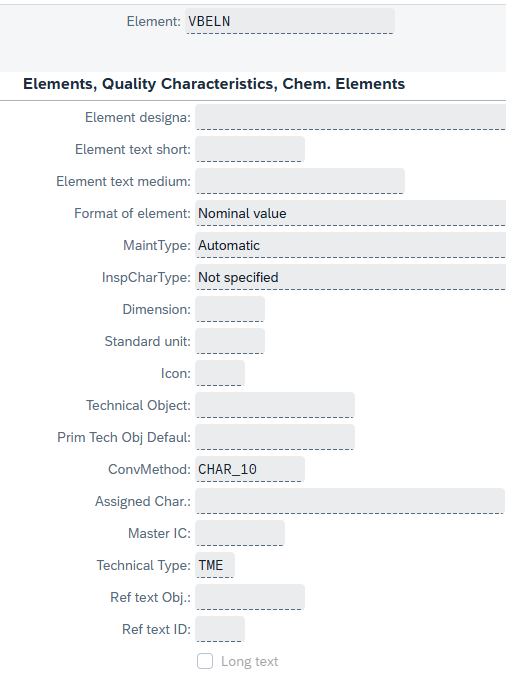

Vbeln

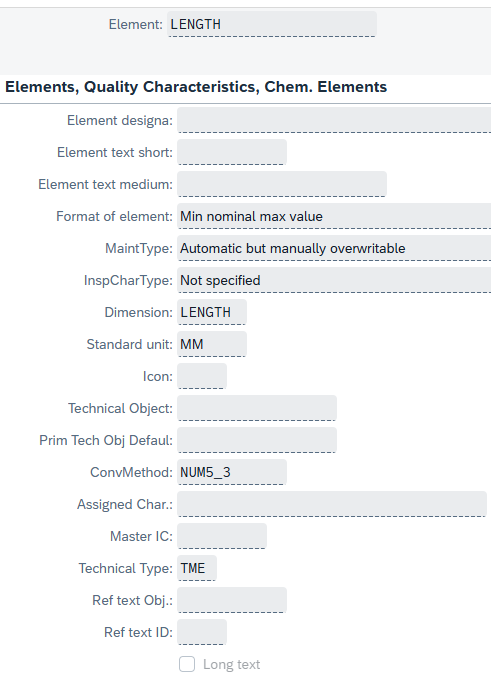

Length

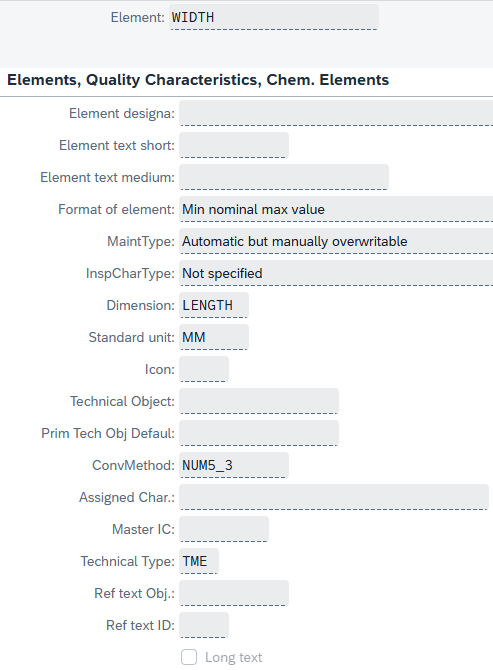

Width

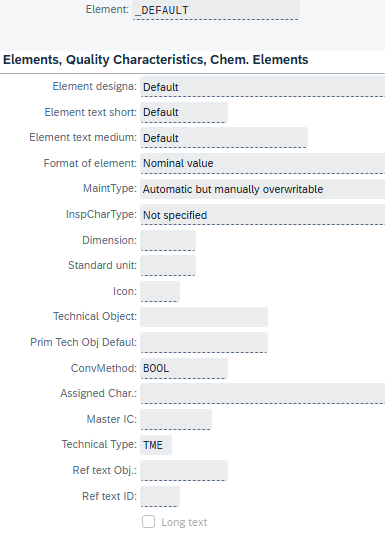

_Default

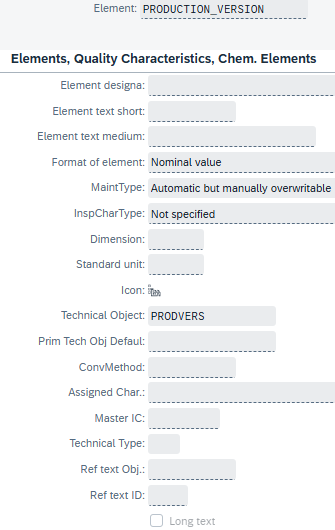

Production_Version

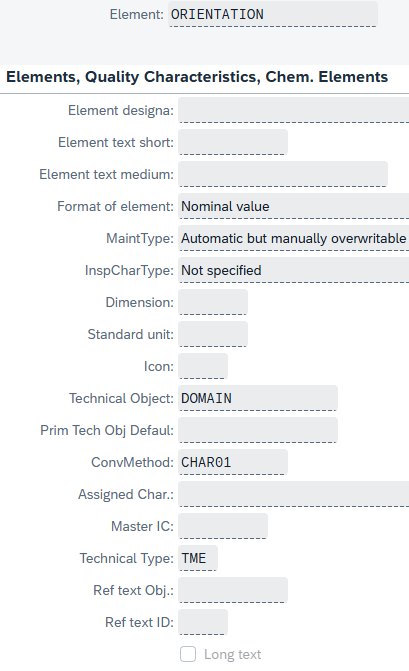

Orientation

Screenshot 2025-04-30 103832.png

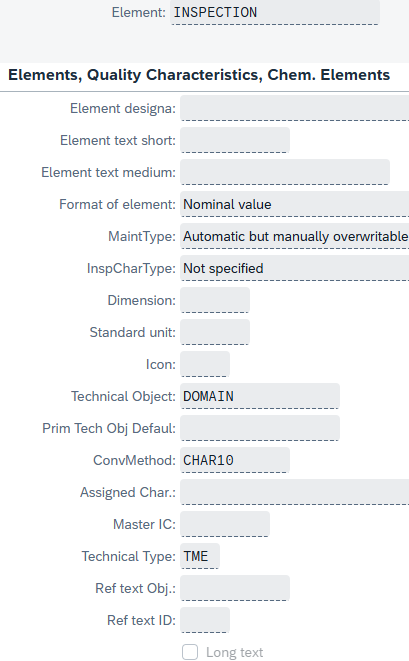

Inspection

Screenshot 2025-04-30 103422.png
