Various elements are required, which are assigned to the object types used.

Transaction /SCT/QP_CUST

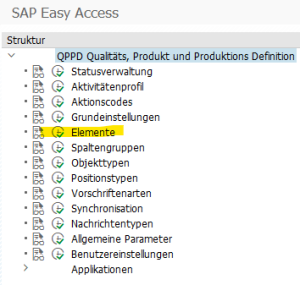

Perform "Elements" activity:


The following elements are obligatory

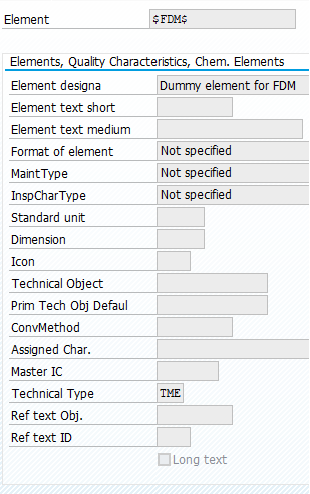

Create element "$FDM$".


The following elements are used very often and should therefore be created.

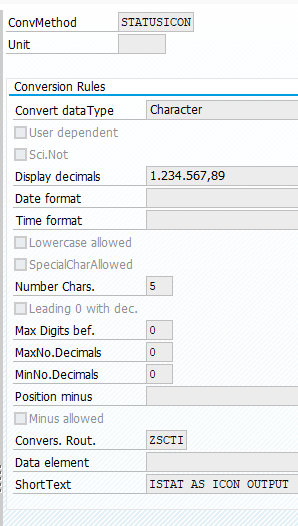

Create "STATUSICON" conversion rule

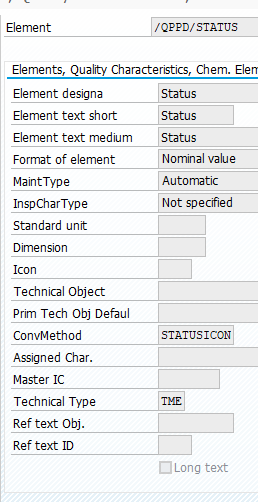

create element "/QPPD/STATUS".


The EBELP conversion method is required to display the item number of the purchasing document.

The ME FDM is sorted by EBELP in ascending order by default. It is therefore recommended to use this element.

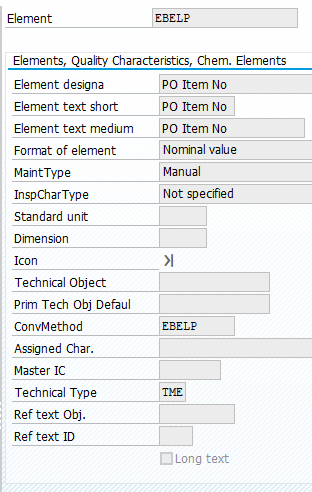

The EBELP element is also required.


Create additional elements for customized objects.

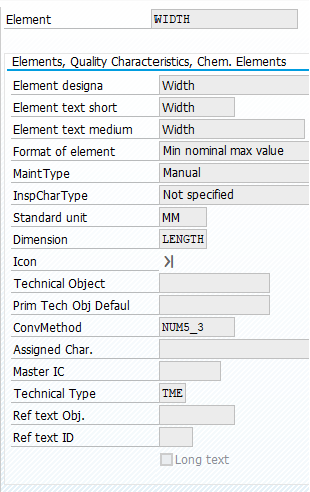

Width

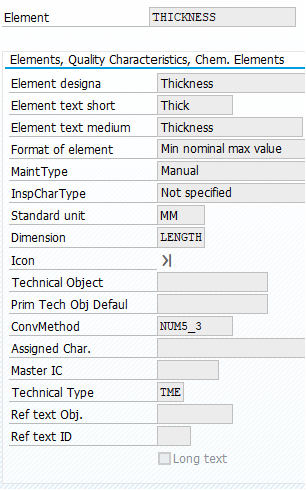

Thickness

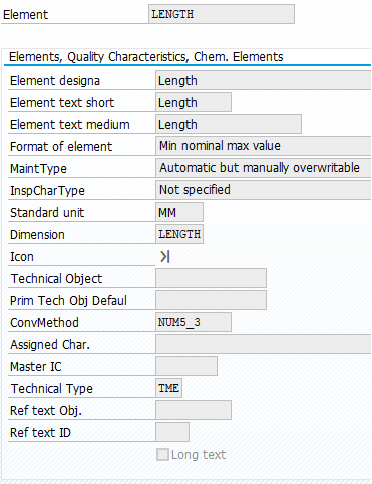

Length
