This page describes how to install the QPPD APP ME for purchasing integration.

Create package

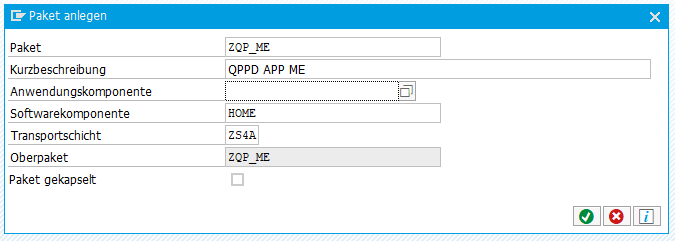

First, a new package ZQP_ME or similar must be created, which contains all QPPD extensions for the ME module.

Confirm. Select transport.

BADI "ME_PROCESS_PO_CUST"

Background: The implementation is to synchronize the data from the order to the various events to the QPPD and from the QPPD to the order.

1. call transaction

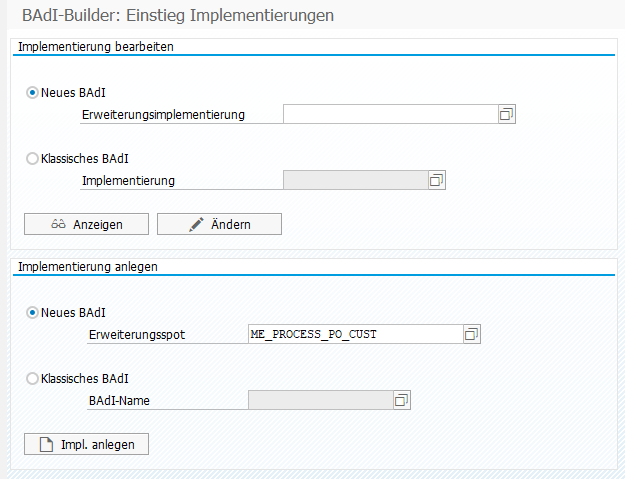

Call transaction SE19 to create a BADI implementation for the standard SAP BADI "ME_PROCESS_PO_CUST":

2. create implementation

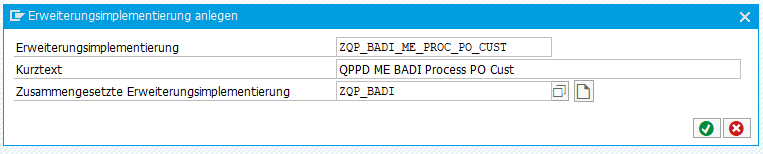

Continue with the "Create impl." button. The following popup appears. Enter a name, short text, and optionally a composite extension implementation.

3. creation of composite extension implementation

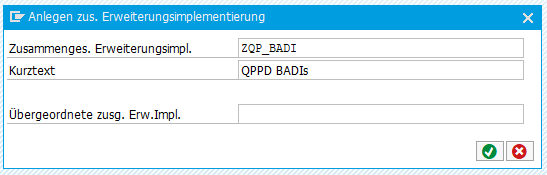

If the composite extension implementation does not exist, it can be created using the button to the right of it. A pop-up is then displayed where the name and short text must be entered:

Confirm now. Select package and transport.

4. creation of BADI implementation

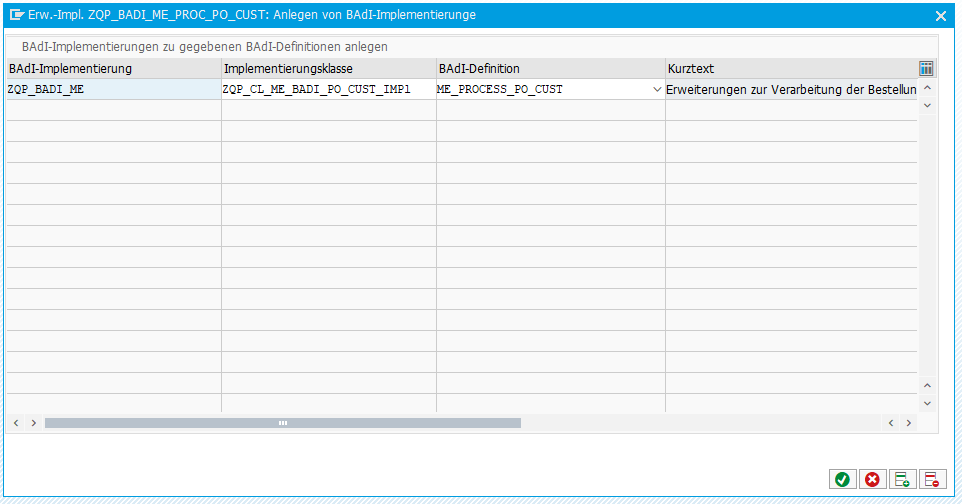

The following popup is now displayed. Name the Z-BADI implementation here, specify an implementation class, and select the BADI definition:

5. Standard-QPPD Implementation

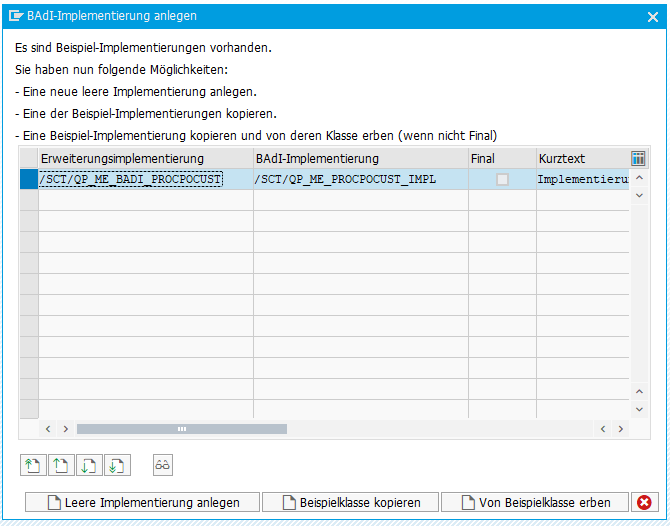

There is a standard QPPD implementation for this BADI. Select the line and click on "Inherit from example class".

6. activate Implementation

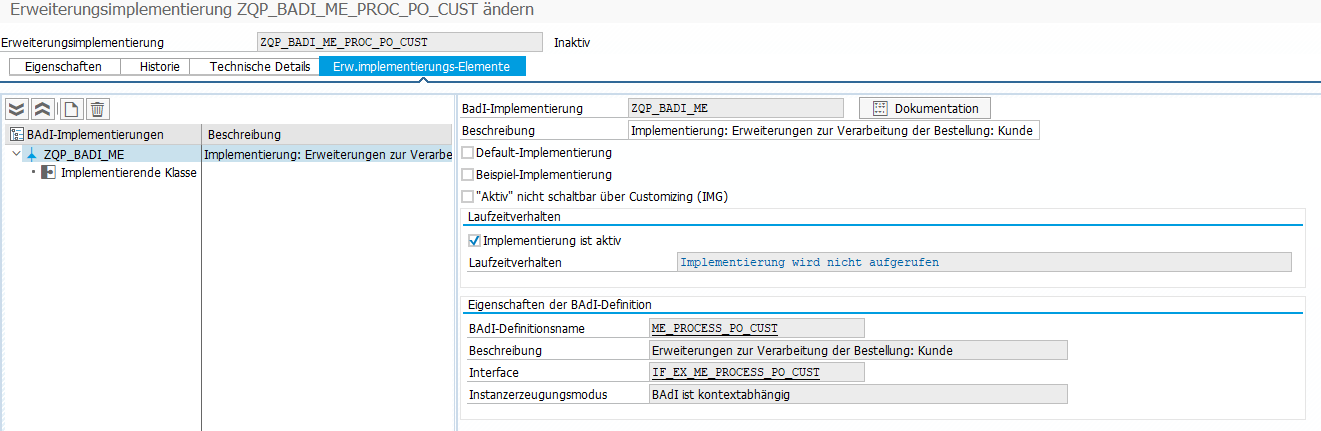

Now activate the implementation. Select transport.

Classic BADI "ME_GUI_PO_CUST"

1. call Transaction

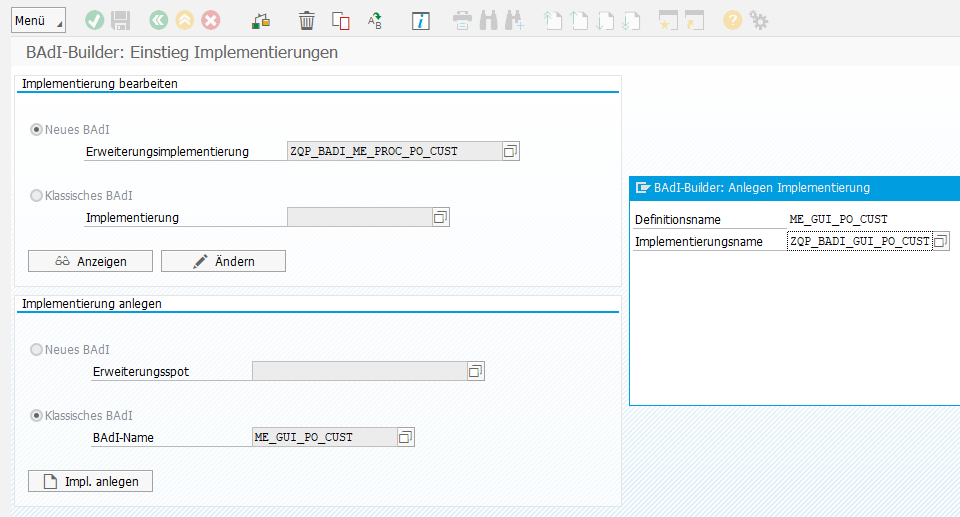

Call transaction SE19 to create a classic BADI implementation for the standard SAP BADI "ME_GUI_PO_CUST":

2. BADI-Builder

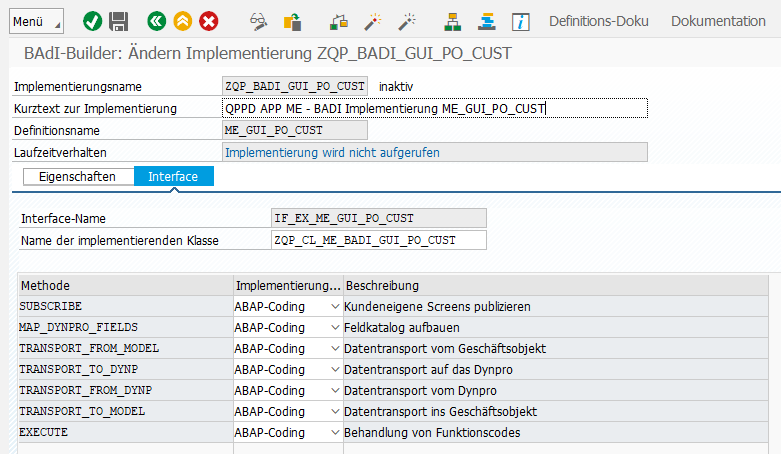

After confirmation, the BADI builder is displayed. Enter a short text and an ABAP class that implements the BADI:

Activate, Select package and transportation

It will then look like this:

Establish inheritance to QPPD standard

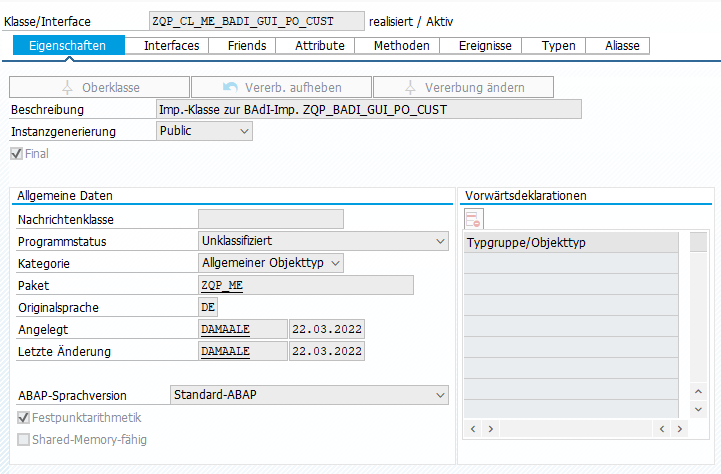

1. open the new Z-ABAP class ZQP_CL_ME_BADI_GUI_PO_POST in transaction SE24.

It will then look like this:

2. an inheritance to the standard QPPD ABAP class must now be created.

To do this,

1. enter a description

2. Super ABAP class /SCT/QP_CL_ME_SYNC has to be added,

3. the "Final" indicator must be removed

4. the program status must be changed to "Productive customer program".

The coding of the class looks as follows:
